Every core matters. For Riyadh offices and industrial sites, connect buildings, cabinets and business systems with planned fusion splicing, ODF/LIU termination and fiber testing.
Riyadh · Jeddah · Dammam · Al Khobar · Jubail
Fiber optic services for corporate offices, commercial facilities, warehouses and industrial campuses. New backbones, network expansions and existing-link remediation begin with a defined technical scope.
Single-mode and multimode fiber joints for backbone links, extensions and repairs. Fiber preparation, precision cleaving, fusion and splice protection are planned around the cable construction and site conditions.

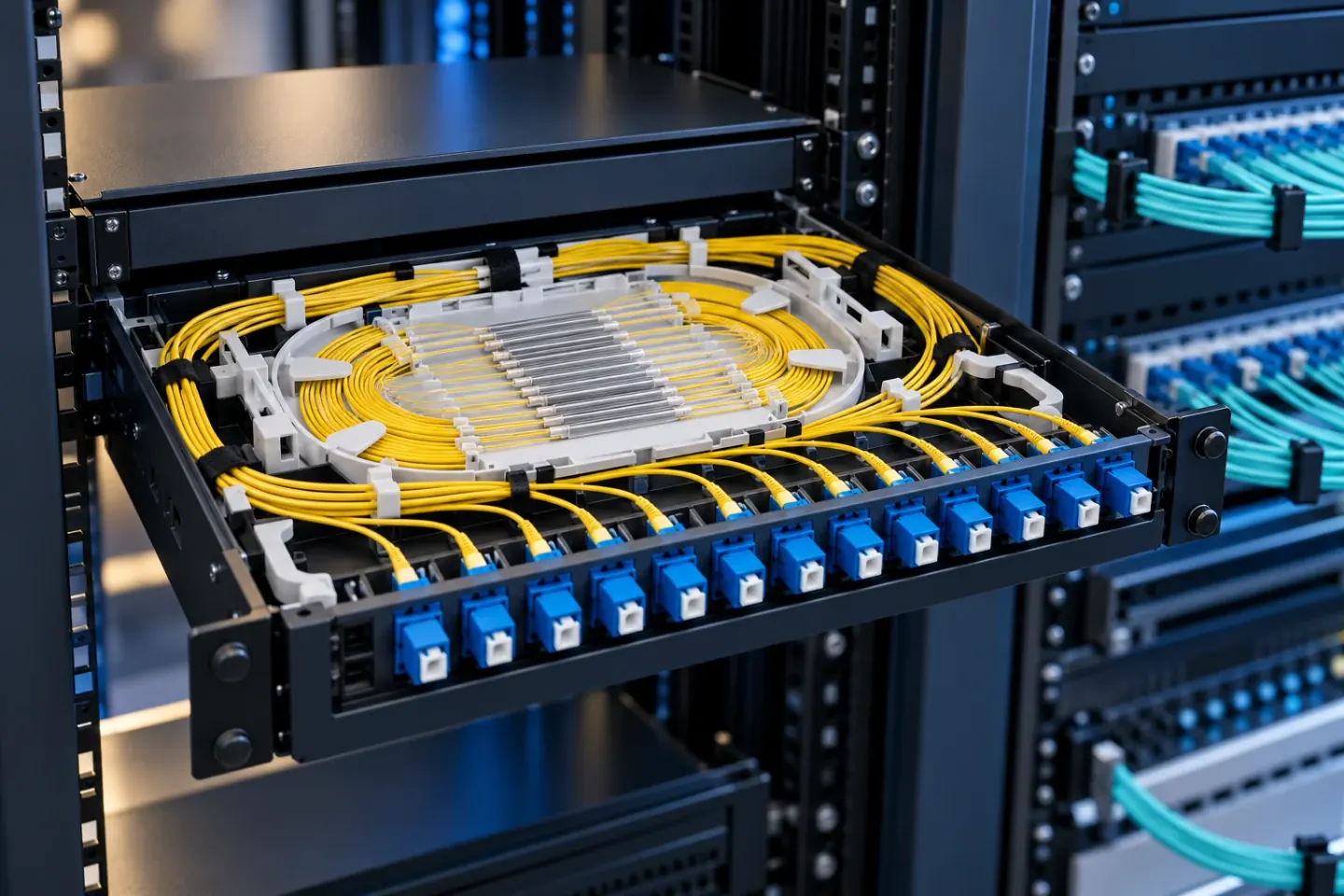

Optical distribution frames, light interface units and fiber patch panels bring each core to an accessible connection point. We discuss pigtails, adapters, enclosure capacity and spare-core management against your BOQ.
An optical time-domain reflectometer helps locate events along a link, including splices, connectors and possible faults. Test wavelengths, launch and receive fibers, directions and acceptance limits are agreed for the project.
OS2 or OM-series fiber · Core count · LC or SC connectors · UPC or APC polish · Enclosure capacity
Confirm compatibility with existing equipment and the project specification.
Agree how the installed link will be evaluated before work starts. A splicer’s estimated joint loss is not a substitute for link acceptance testing.
Build the handover into the quotation.
Discuss core schedules, port labels, test traces, loss results and as-built records as explicit deliverables.
Confirm end-face condition, connector compatibility, core IDs and port mapping.
Review OTDR events and link length using test settings suited to the fiber and route.
Specify insertion-loss measurements and compare results against the agreed loss budget.
Match results to labeled cores and provide the agreed report files and installation records.
For IT managers, consultants and main contractors, a useful quotation explains the work, the interfaces and the evidence expected at completion.
BOQ, drawings, fiber type, core counts and existing network interfaces.
Routes, rack space, containment, access permits and shutdown windows.
Cable preparation, splicing, termination, protection and labeling within the agreed scope.
Agreed tests, remedial actions and documented handover for your team.
Requirements before promises. Schedule, material availability, testing scope and acceptance criteria are confirmed in the quotation. Manufacturer certification, warranty eligibility or specific equipment ownership should be confirmed where your project requires them.
Product and equipment manufacturers to discuss when reviewing your fiber BOQ.
Names are references for project planning. Inclusion does not imply an authorized partnership, dealership, certification, stock availability or support for every product. Confirm proposed brands, models, supply and warranty terms in your quotation.
Based in Al Khobar, Al Aamri Solutions welcomes fiber optic installation, splicing and termination enquiries across these Saudi business hubs. Delivery arrangements depend on site scope and availability.
mohammed.j@alaamrisolutions.comFiber optic splicing, termination and testing FAQs for project teams.
Fusion splicing joins two fiber ends into a protected permanent joint. Termination presents a fiber at a connector, often by splicing a connectorized pigtail to the installed cable and mounting it in an ODF or LIU. The connector type and enclosure layout should match your network specification.
OTDR testing identifies events and their locations. End-to-end insertion-loss testing with a light source and power meter or OLTS measures the loss across the complete link. These tests answer different questions; agree the required combination, wavelengths and loss budget before installation.
Share the cable marking, core count, connector type, route and available test records. We review compatibility, spare capacity and access before proposing repair, extension or retermination. Different fiber types and connector polish types should not be treated as interchangeable.
We are based in Al Khobar and welcome project enquiries for Riyadh, Jeddah, Dammam, Al Khobar and Jubail. Site access, travel arrangements, schedule and team availability are confirmed when the scope is reviewed.
Include the site city, BOQ or core count, fiber type, route lengths, ODF/LIU quantities, connector requirements, drawings and required completion date. Specify the testing, report format, shutdown windows and handover requirements so they can be included in the quotation.
Send your BOQ, site location and required timeline. We’ll discuss the installation, materials and testing needed for your corporate or contractor RFQ.
Request a fiber optic quotation
